p4 indoor rental led display
P4 indoor rental led display Product Description：
Born to be small, Delivering high definition
1.Cabinet just 9kg,thickness 80mm only, labor saved significantly.
2.Elegant visual performance with 16:9 size ratio, idea for multi media
play.
3.Smooth and exquisite picture processing, performance of high gray
scale and high refresh rate.
Die-casting aluminum, secure and nice in constitution.
No fans, mute when operation.
Dustproof, IP30.
High refresh rate and high gray depth.
Completely black LED with high contrast.
Large viewing angle, the panel viewing angle is up to 140, the vertical
angle could reach 140, the image won't be out of shape and color cast
between the rang.
Exactly connected and easy to install and dismount.
|
Item
|
Parameter
|
|

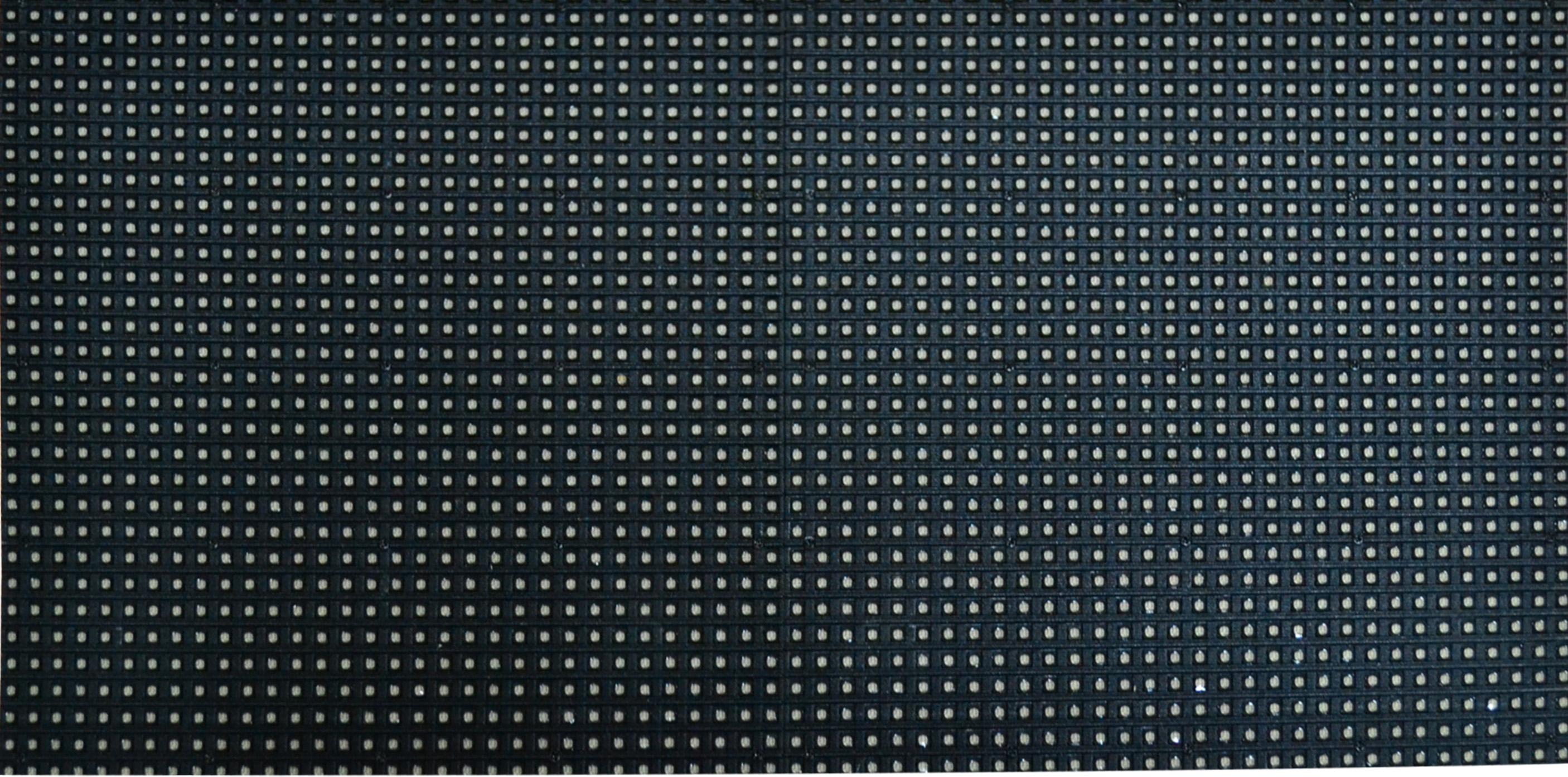

Pixel Pitch
|
4mm
|
|

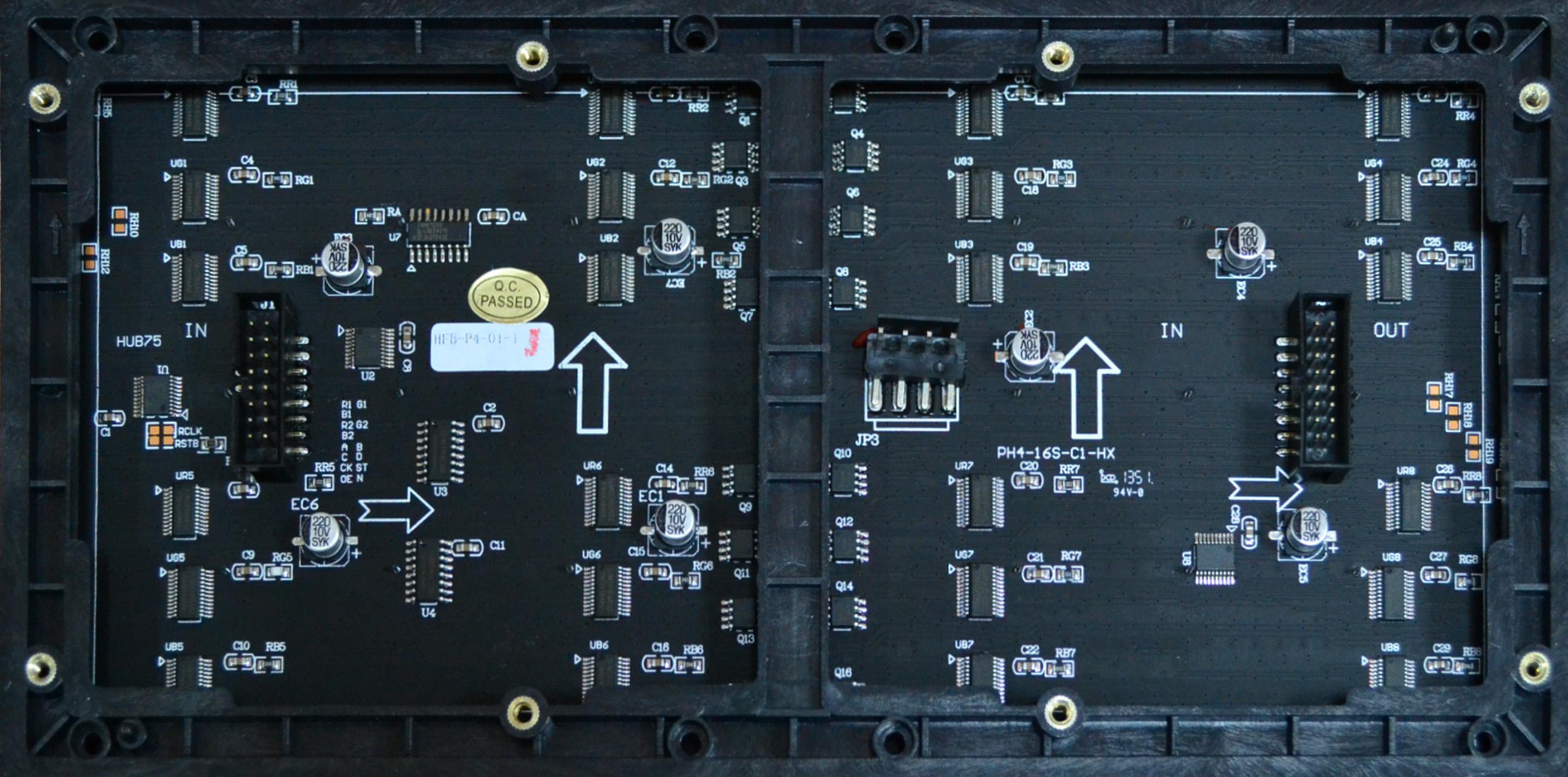

Module size
|
256mm*128mm
|
|

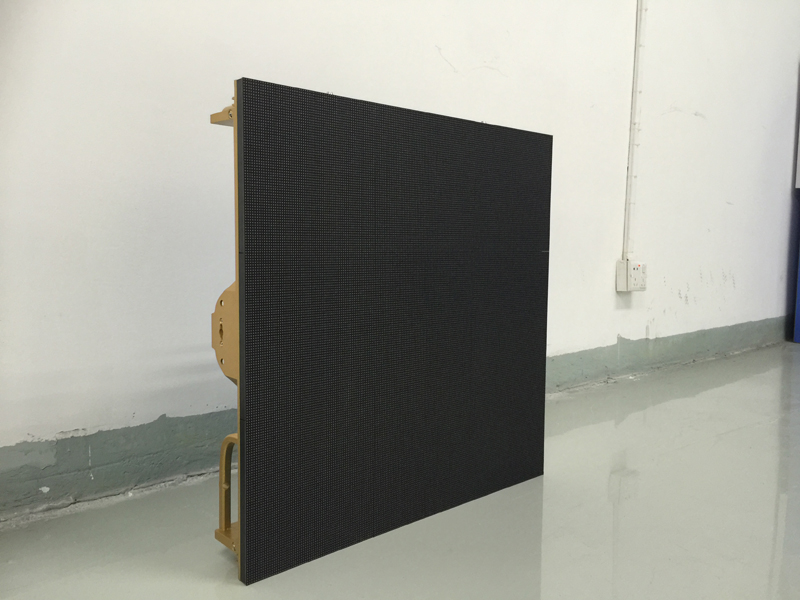

Cabinet Size(W*H*D)
|
512*512*(80±5)mm
|
|
Pixel Configuration
|
1R1G1B
|
|
Pixels Density
|
62500dots/m2
|
|
Refresh Rate
|
≥1000Hz
|
|
Package mode
|
SMD2121 Black Lamp
|
|
Pixel resolution
|
128dots(W)*128dots(H)
|
|
Max Power
|
18W*8
|
|
Color Temperature
|
6500-9500K
|
|
Best Viewing Angle
|
H:140° V:140°
|
|
Weight
|
(8.0±0.5)kg
|
|
Drive type
|
Constant drive
|
|
Scan mode
|
1/16scan
|
|
Port type
|
HUB75-A
|
|
Brightness of white balance
|
≥1200cd/m2
|
|
Best Viewing Distance
|
1--5m
|
|
Protection Level
|
IP30
|
|

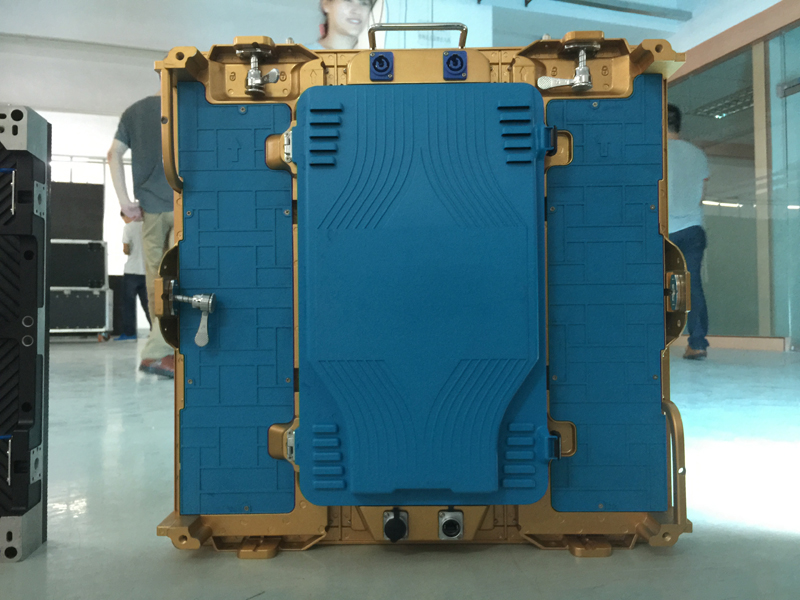

Cabinet Material
|
Die-casting Aluminum Alloy Cabinet
|
|
Operation Voltage
|
100v--240v(47--63Hz)/220v50Hz
|
|
Working Humidity
|
10%-60%
|
|
Working Temperature
|
-20℃--+50℃
|
