1

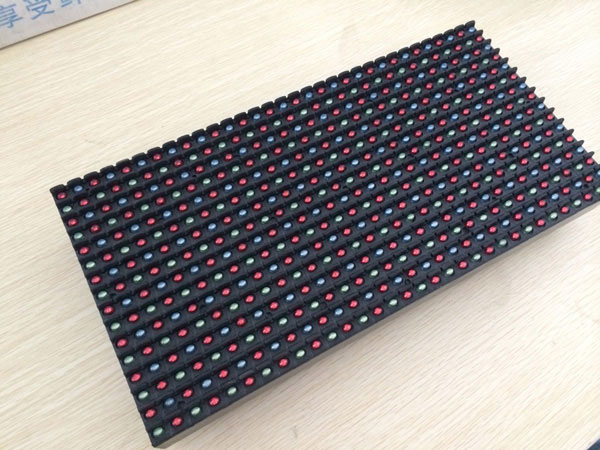

Pixel Pitch

20mm

2

Pixel Configuration

1R1G1B

3

Module Resolution

16dots X 8dots

4

Module Pixles

128dots

5

Module Size

320mm X 160mm

6

Module Weight

0.5KG

1

Cabinet Size(WXHXD)

960X800X160(mm)

2

Cabinet Resolution

96 X 80(dots)

3

Module Quanity

15pcs

4

Cabinet Pixels

7680dots

5

Pixel Density

2500dots/m²

6

Average Power Consumption

405W/m2

7

Max. Power Consumption

910

8

Material

Iron

9

Cabinet Weight

55KG

1

Screen Area

12.48mx12m=149.76square meters

2

Whole Screen Resolution

1248dots(W)X1200dots(H)=1497600dots

3

Cabinet Quantity

13(W)X15(H)=195pcs

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, static

7

View Angle

Horizontal ±70°Vertical ±45°

8

Optimal Viewing Distance

10m-200m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh frequency

≥500Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

≤0.00001

14

Power Consumption

Max.:910W/㎡    Average: 405W/㎡

15

Screen weight

≤50kg/㎡

16

MTBF

>10,000 hours

17

Life span

≥100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP65

21

Temperature-operating

﹣30℃～50℃

22

Humidity-operating

10%～95%

23

Controlling system

LINSN

24

Operating System

Windows98/me/2000/NT/XP
