1

Pixel Pitch

10mm

2

Pixel Configuration

1R1G1B

3

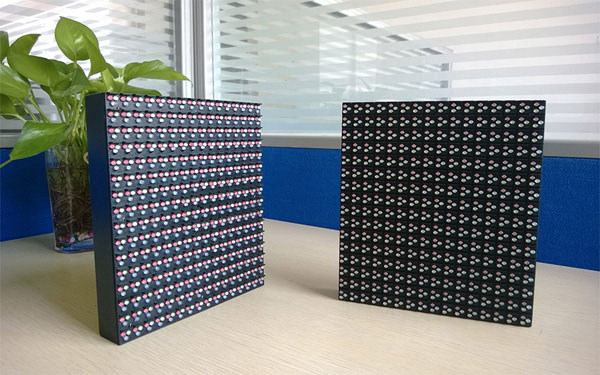

Module Resolution

16dots X 16dots

4

Module Pixles

256dots

5

Module Size

160mm X 160mm

6

Module Weight

0.45KG

1

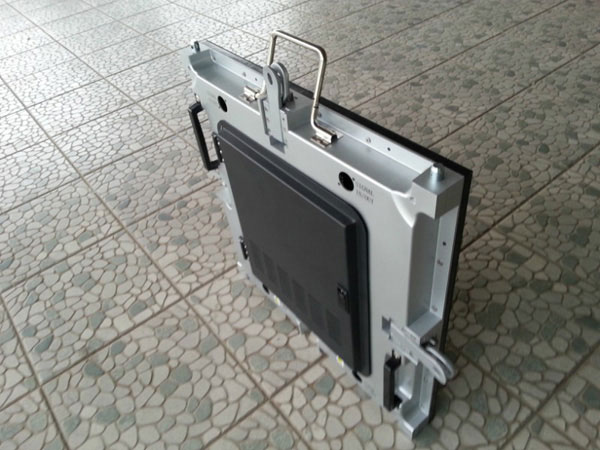

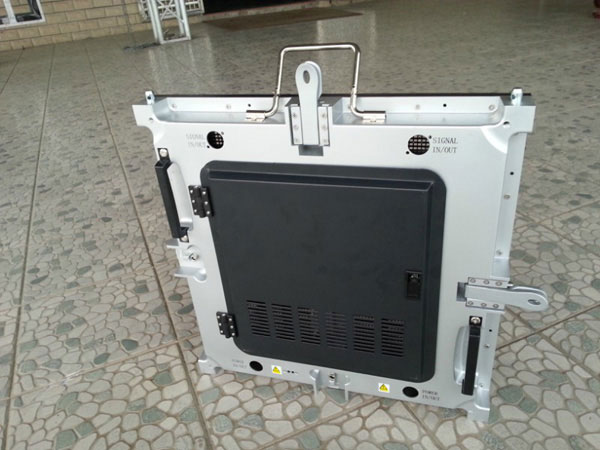

Cabinet Size(WXHXD)

480X480X130(mm)

2

Cabinet Resolution

48 X 48(dots)

3

Module Quantity

9pcs

4

Cabinet Pixels

2304dots

5

Pixel Density

10,000dots/m²

6

Average Power Consumption

410W/m2

7

Max. Power Consumption

830W/m2

8

Material

Aluminum

9

Cabinet Weight

35KG/m2

1

Screen Area

4.608m(W)x2.88m(H)=11.52㎡

2

Whole Screen Resolution

384dots(W)X240dots(H)=11,520dots

3

Cabinet Quantity

8(W)X 5(H)=40pcs

4

Brightness

≥7000mcd/㎡

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/4 Scan

7

View Angle

Horizontal ±70°Vertical ±45°

8

Optimal Viewing Distance

10m-200m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh requency

≥500Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

≤0.00001

14

Power Consumption

Max.:830W/㎡    Average: 410W/㎡

15

Screen weight

≤35kg/㎡

16

MTBF

>10,000 hours

17

Life span

≥100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP65

21

Temperature-operating

﹣30℃～50℃

22

Humidity-operating

10%～95%

23

Controlling system

LINSN

24

Operating System

Windows98/me/2000/NT/XP
