Your present position:Home > Case > Sport Perimeter LED Displays

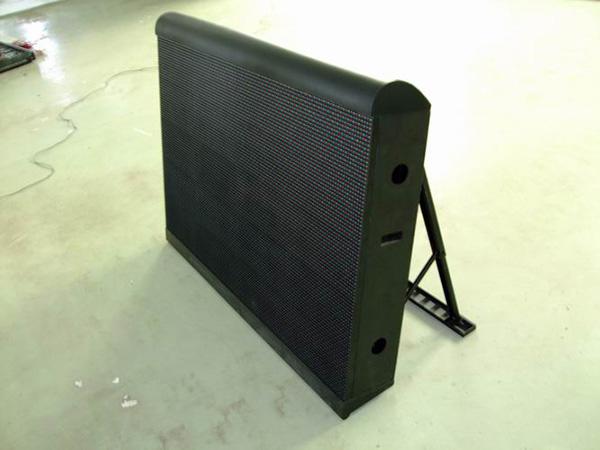

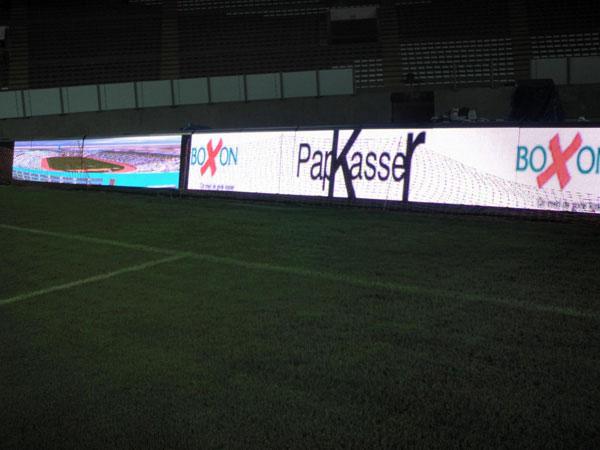

Sports Perimeter LED Displays

 Sports Perimeter LED Displays


Technical Parameters of Sports Perimeter LED Displays:

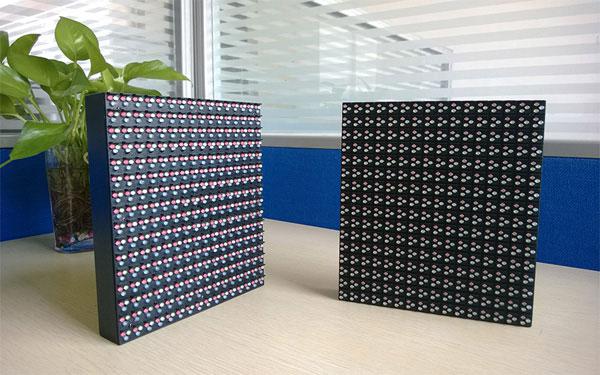

Module Parameters:

1

Pixel Pitch

10mm

2

Pixel Configuration

1R1G1B DIP

3

Module Resolution

32dots X 16dots

4

Module Pixles

512dots

5

Module Size

320mm X 160mm

6

Module Weight

0.35KG


Cabinet parameters:

1

Cabinet Size(WXHXD)

960mmX960mmX160mm

2

Cabinet Resolution

96dots X 96dots

3

Module Quanity

18pcs

4

Cabinet Pixels

9,216dots

5

Pixel Density

10,000dots/m2

6

Average Power Consumption

450W/m2

7

Max. Power Consumption

780W/m2

8

Material

Aluminum Alloy

9

Cabinet Weight

40KG/m2


Whole screen Parameters:

1

Screen Area

 3.84m(W)x2.88m(H)=11.06

2

Whole Screen Resolution

384dots(W)X288dots(H)=110,592dots

3

Cabinet Quantity

4(W)X 3(H)=12pcs

4

Brightness

1000mcd/

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/8 Scan

7

View Angle

Horizontal 90° Vertical 60°

8

Optimal Viewing Distance

10-100m

9

Brightness Control

Red,Green and Blue 256 Grade/Each

10

Fresh requency

500Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

0.00001

14

Power Consumption

Max.: 690W/    Average: 315W/

15

Screen weight

40kg/

16

MTBF

>10,000 hours

17

Life span

100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP43

21

Temperature-operating

30℃~50

22

Humidity-operating

10%95%

23

Controlling system

XIXUN

24

Operating System

Windows98/me/2000/NT/XP
