Your present position:Home > Case > Outdoor Single/Dual Color LED Displays

P10 Outdoor Dual Color(1R1G) Led Screen

 P10 Outdoor Dual Color(1R1G) Led Screen

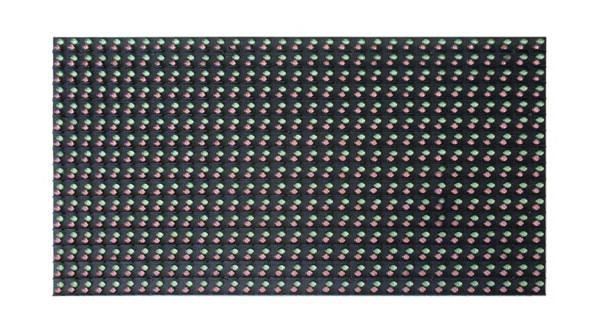

outdoor dual led color screen.jpg

Technical Parameters:

Module parameters of p10 outdoor dual color led screen:



1

Pixel Pitch

10mm

2

Pixel Configuration

1R1G

3

Module Resolution

32dots X 16dots

4

Module Pixels

512dots

5

Module Size

320mm X 160mm

6

Module Weight

0.55KG

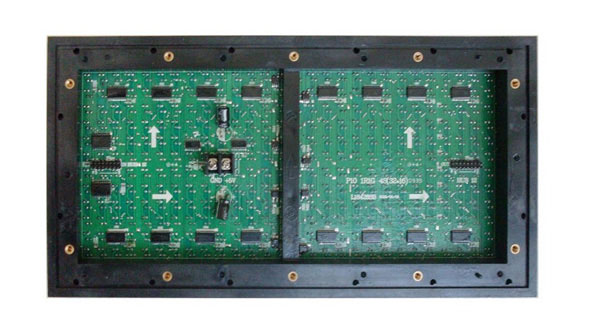

dual color led screen .jpgp10 outdoor 1r1g dual color led screen.jpg

p10 outdoor dual color led screen parameters:

1

Screen Area

3.84m(W)x1.92m(H)=7.3728

2

Whole Screen Resolution

384dots(W)X192dots(H)=73728ots

3

Cabiner Quantity

4(W)X2(H)=8pcs

4

Brightness

5000mcd/

5

Brightness(Max./Min.)

1.2:1

6

Driving Method

Constant current, 1/4 Scan

7

View Angle

Horizontal ±70°Vertical ±45°

8

Optimal Viewing Distance

10m-100m

9

Brightness Control

Red and Green 256 Grade/each

10

Fresh requency

500Hz

11

Frame Frequency

50 -- 60Hz

12

Input Voltage

AC220V/50Hz or AC110V/60Hz

13

Defects Rate

0.00001

14

Power Consumption

Max.:580W/    Average: 275W/

15

Screen weight

42kg/

16

MTBF

>10,000 hours

17

Life span

100,000 hours

18

Module Display Brightness Uniformity

<3%

19

Earth Leakage Current

<3mA

20

Protective Grade

IP65

21

Temperature-operating

40℃~50

22

Humidity-operating

10%95%

24

Operating System

Windows98/me/2000/NT/XP
