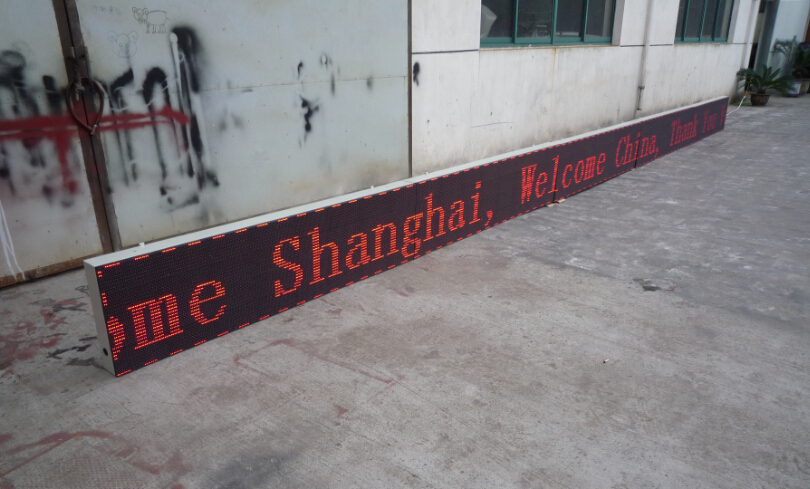

p10 outdoor single color led message sign
p10 outdoor single color led message sign
1. Parameters of p10 red led screen:
Pixel Pitch |
10mm |
Pixel composing |
1R/1G/1B/1W |
Density |
10,000dots/m2 |
module resolution |
32 dots* 16 dots |
Module size |
320mm * 160mm |
2. Whole screen parameter of red led screen:
Pixel pitch |
10mm |
Short circuit protection |
Yes |
Standard cabinet size |
960mm*480mm or design |
Refresh |
400 Hz |
Weight per sqm |
30Kg/sqm |
Changing frame frequency |
60 Hz |
Whiteness brightness |
2500 cd/sqm |
Driving method |
Constant driving ,1/4scan |
Led package |
DIP |
Working Environment |
Outdoor |
Wave Angle (H) |
110°(H)/30°(V) |
Working temperature |
-10~50 |
Best view distance |
≥5m |
Working Humidity |
-10~90% |
Working voltage |
AC 220v/380v±10%50~60Hz |
Out of control |
1/10,000 ( scattered) |
Power consumption/ m2 |
200W/sqm |
lifetime |
100,000 hours |
