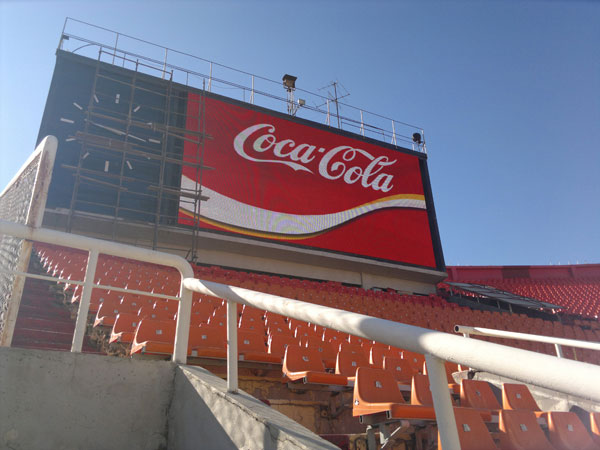

P16 full color display screen
The LED display features of Harse
1.A new mask design, which led to zero reflection from the LED light. To ensure the screen display effect.
2.Unit module cabinet design adopts hot spraying technology, by this way, improve the antirust function.
3.The installation surface flatness of LED electronic display module requires plus or minus 0.2 mm. The
whole screen has good flatness, good uniformity will have.
4.On display control, it adopts very large scale FPGA single chip as the processor cores, to realize the super
gray level control(256-4096 level)and camma and anti camma double real-time correction.
5.Make use of the light intensity equalization algorithm, fuzzy control theory and intelligent monitoring technology, etc
to achieve automatic adjustment of brightness and white balance automatically compensate.
Module parameters of p16 Stadium LED Display:
Pixel Pitch |
16mm |
Pixel composing |
2R1G1B |
Density |
3906dot/m2 |
module resolution |
16dots* 16dots |
Module size |
256mm * 256mm |
Whole p16 outdoor big led screen specification
Pixel |
16mm |
Short circuit protection |
Yes |
Standard cabinet size |
1024mm*768mm or design |
Refresh |
400 Hz |
Weight per sqm |
40 Kg/sqm |
Changing frame frequency |
60 Hz |
Whiteness brightness |
7000 cd/sqm |
Driving method |
Static State |
Led package |
DIP |
Working Environment |
Outdoor |
Wave Angle (H) |
110°(H)/55°(V) |
Working temperature |
-30~60℃ |
Best view distance |
≥14m |
Working Humidity |
-20~90% |
Working voltage |
AC 220v/380v±10%50~60Hz |
Out of control |
1/10,000 ( scattered) |
Power consumption/ m2 |
350W/sqm |
lifetime |
100,000 hours |
